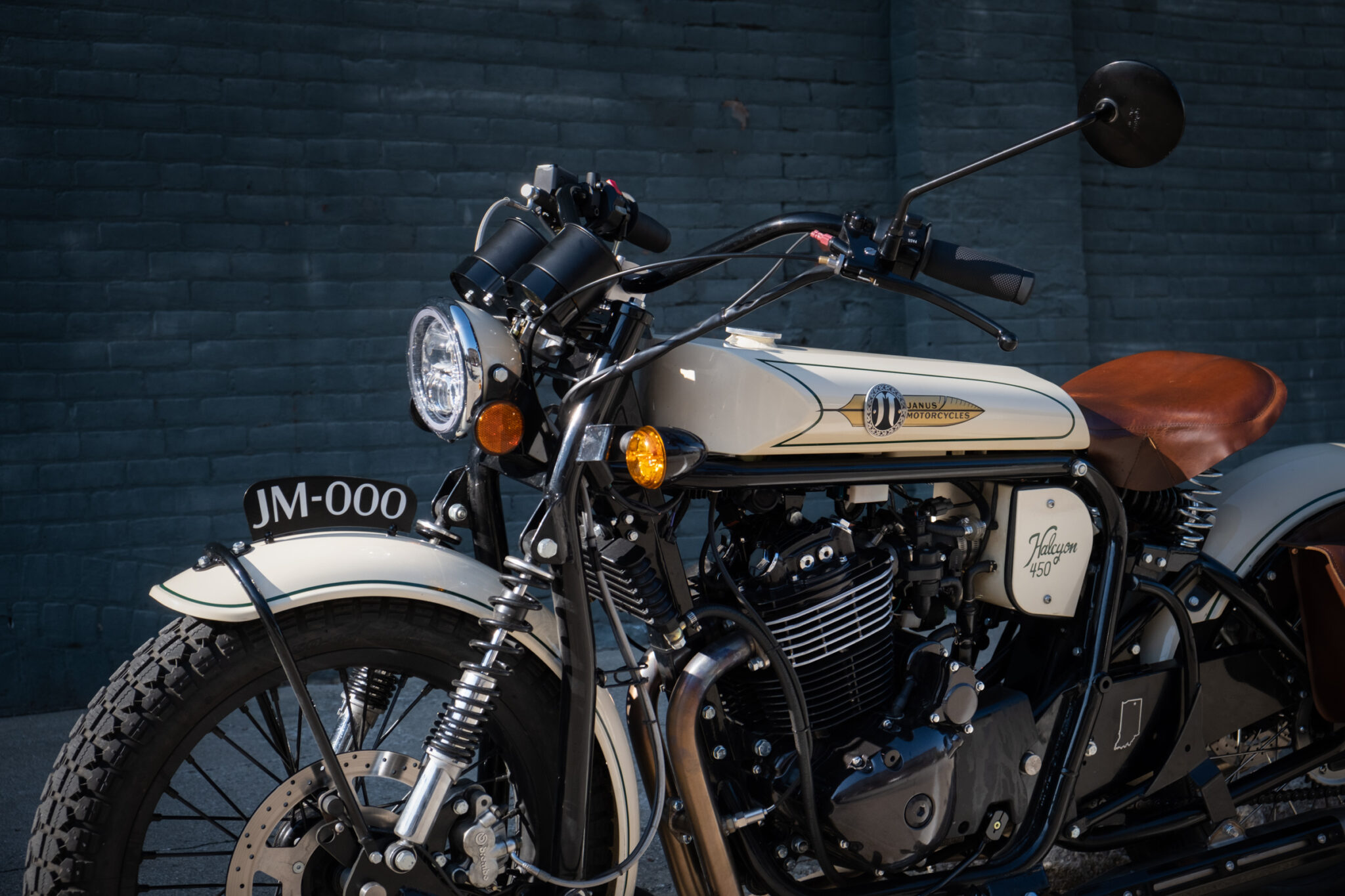

SWM 445cc single-cylinder engine with Electronic Fuel Injection, 4 valve overhead cam, and dual exhaust design. Capable of 90 miles per hour.
Brembo front and rear calipers and master cylinders, with Spiegler braided stainless lines.
New tank badging with diecast emblem and hand-painted feature & name. Hand-formed steel fenders with beaded edge.
All-new frame, Janus leading-link forks, and proprietary cantilever rear swing arm with twin under-seat IKON shocks.
Featuring an exclusive Sargent® seat with contoured multi-stage foam and leather cover.
Type: Air/oil-cooled, 4-stroke, single cylinder
Displacement: 445cc
Compression ratio: 10:1
Starting: Electric
Type: Single overhead camshaft, 4 valve
Type: Dry sump with gerotor pump, cartridge filter, and oil cooler
Type: Electronic
Type: Electronic fuel injection
Drive pinion gear: 24
Clutch ring gear: 64
Transmission ratio: 2.667
Type: Wet, multi-plate
Type: Frame: DOM tubular steel double cradle
Type: Proprietary leading-link fork with dual progressive coil-over Ikon shocks
Type: Proprietary cantilever transom with dual progressive coil-over Ikon shocks
Type: 280mm disc with two-piston Brembo floating caliper
Type: 220mm disc with single-piston Brembo floating caliper
Wheels: CNC machined aluminum hubs with aluminum alloy rims and stainless steel straight-pull spokes
Tires: Front 4.00 x 18, Back 4.50 x 18
Instrumentation: Digital tachometer, speedometer and odometer, with LCD screen and indicator lights
Maximum Power: 30 hp @ 7,500 rpm
Maximum Speed: 90mph
Dimensions: 86’’ long & 31’’ wide. Height without mirrors: 41 inches
Seat Height: 30”
Wheelbase: 56 inches
Fuel Capacity: 2 gal
Dry Weight: 345 pounds
Bring the vision to life. Build yours to the specifications of your choosing and enjoy the many rides to come.
